| 廠牌 | ASUS華碩 |
| 產品型號 | WS C422 PRO/SE |
| CPU | - Intel® Socket 2066 處理器
- 支援 Intel® 14 nm CPU
* 是否支援 Intel® Turbo Boost Technology 2.0,需視 CPU 類型而定。 Supports Intel® Turbo Boost Max Technology 2.0 |
| 晶片組 | Build in Intel® C422 |
| 記憶體 | 8 x DIMM, 最高可支援到512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM 記憶體 *1 Quad Channel 記憶體架構 |
| 多GPU支援 | 支援 NVIDIA® 3-Way SLI™ 技術 支援 AMD 3-Way CrossFireX™ 技術 |
| 擴充槽 | - 48-Lane CPU-
- 2 x PCIe 3.0 x16 (x16 mode)
- 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
- 1 x PCIe 3.0 x4 (x4 mode)
|
| 資料儲存應用 | - 1 x M.2 x4 Socket 3*2, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
- 1 x M.2 x4 Socket 3*3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 1 x U.2 connector*2
- 支援Raid 0, 1, 10
- Intel® Rapid Storage Technology Enterprise supports
- Intel® Virtual RAID (VROC) support for CPU RAID
|
| 區域網路 | Intel® I210-AT, 2 x Gigabit 區域網路控制器 |
| 音效 | - Realtek® ALC S1220A 8 通道 高傳真音效 CODEC 搭載 Crystal Sound 3 技術

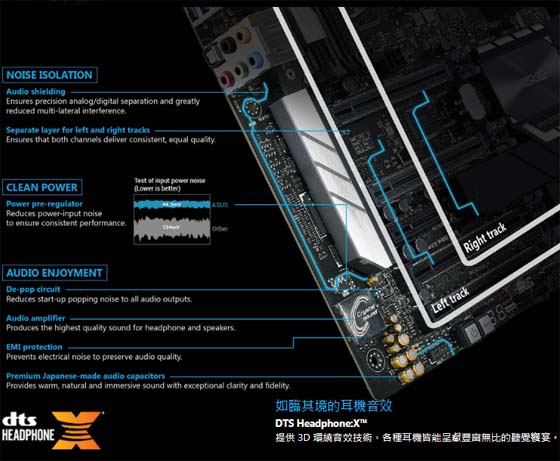

- Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - 支援 : 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能, Front Panel MIC Jack-retasking - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192kHz playback *4 - Audio Feature :
- 光纖 S/PDIF 輸出埠位於背板 - DTS Connect - DTS Headphone:X - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Separate layer for left and right track, ensuring both sound deliver equal quality
|
| USB連接埠 | - Intel® C422 Chipset :
- 6 x USB 3.1 Gen 1 連接埠 (4 位於背板, , 2 位於主機板中)
- Intel® C422 Chipset :
- 6 x USB 2.0 連接埠 (4 位於背板, , 2 位於主機板中)

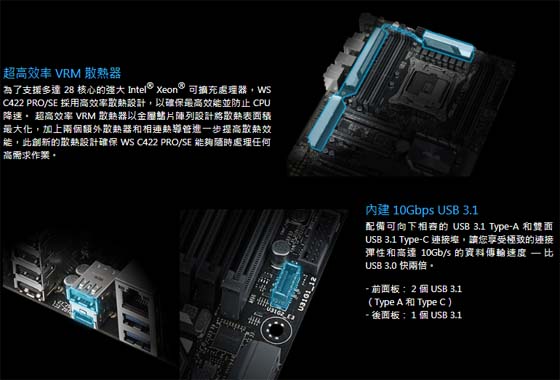

- ASMedia® USB 3.1 Gen 2 controller :
- 2 x USB 3.1 Gen 2 連接埠 (2 位於背板, , Type-A + USB Type-CTM)
- ASMedia® USB 3.1 Gen 2 controller :
- 1 x USB 3.1 Gen 2 front panel connector 連接埠
|
| 獨特功能 | - ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - 華碩獨家功能 :
- MemOK! - 內建按鈕 : 電源/重置 - Ai Charger+ - Turbo LAN - 華碩靜音散熱解決方案 :
- Stylish Fanless Design with M.2 Heat-sink solution - 華碩 EZ DIY :
- ASUS USB BIOS Flashback™ - 華碩 Q-Design :
- 華碩 Q-Code - ASUS Q-Shield - 華碩 Q-LED (CPU, DRAM, VGA, Boot Device LED) - 華碩 Q-Slot - 華碩 Q-DIMM - AURA :
- Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) - DIGI + Power Control :
- CPU Power: Digital 8-phase power design - DIGI + Power Control :
- DRAM Power: Digital 2-phase power design - M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

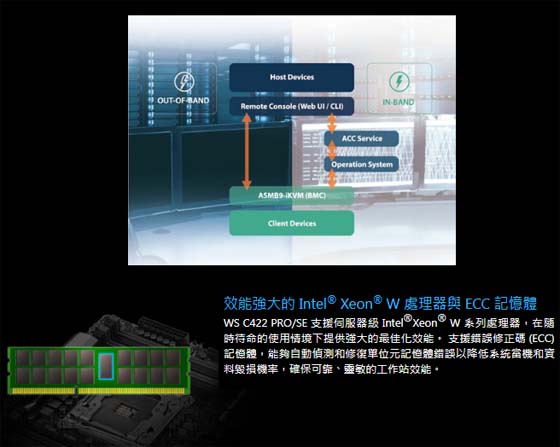

- Asus Control Center (ACC) IT management software supported
- Intel® Virtual RAID on CPU (VROC) ready

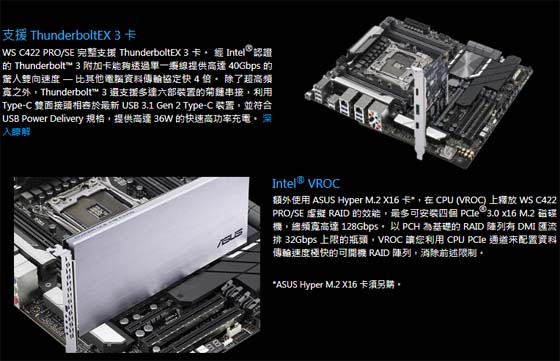

- Thunderbolt 3 support
|
| 後面板輸出端子 | - 2 x LAN (RJ45) 連接埠
- 1 x 光纖 S/PDIF 輸出
- 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,
- 4 x USB 3.1 Gen 1 (藍色)
- 4 x USB 2.0 (one port can be switched to USB BIOS Flashback™)
- 1 x USB BIOS Flashback™ Button(s)
- 1 x 8-channel Audio I/O
|
| 內建 I/O 連接孔 | - 1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠
- 1 x USB 2.0 接頭支援額外的 2 USB 2.0 連接埠
- 6 x SATA 6Gb/s 接頭
- 1 x Aura Addressable Strip Header(s)
- 2 x CPU 風扇接頭
- 1 x AAFP connector
- 1 x Aura RGB Strip Headers
- 1 x 24-pin EATX 電源接頭
- 2 x 8-pin ATX 12V 電源接頭
- 1 x MemOK! 按鈕
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x 熱感測器接頭
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
- 1 x Power-on 按鈕
- 1 x Reset 按鈕
- 1 x VROC_HW_Key
- 1 x AIO_PUMP connector
- 1 x Thunderbolt header(s)
- 1 x 5-pin EXT_FAN(Extension Fan) connector
- 1 x Clear CMOS button(s)
- 1 x U.2 connector
- 3 x System panel connector
- 1 x Front fan
- 1 x Rear fan
- 1 x COM port header
- 1 x Aspeed VGA header
- 1 x USB 3.1 Gen 2 front panel connector
- 1 x CPU_OV jumper
- 1 x PUMP Fan connector
- 1 x 6-pin ATX 12V Power connector
|
| BIOS | - CrashFree BIOS 3
- EZ Flash3
- F11 EZ Tuning Wizard
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
|
| 主機板尺寸 | ATX 主機板尺寸 12 吋 x 9.6 吋 ( 30.5 公分 x 24.4 公分 ) |
| 備註 | - *1 支援的記憶體容量視安裝的 CPU 和記憶體而定
- *2 M.2_2 與 U.2 共用頻寬。
- *3 M.2_1 與 SATA6G_1 共用 SATA 頻寬
- *4 由於 HAD 頻寬限制,8 聲道音訊不支援 32 位元/192kHz。 32 位元/192kHz 僅在 Windows® 10 下可用
|
| 保固 | 保固三年 ※保固期有可能會變更或終止,恕不另行通知,以原廠公佈為準。 |
