| 無線網路標準 | IEEE802.11b, IEEE802.11g, IEEE802.11n |

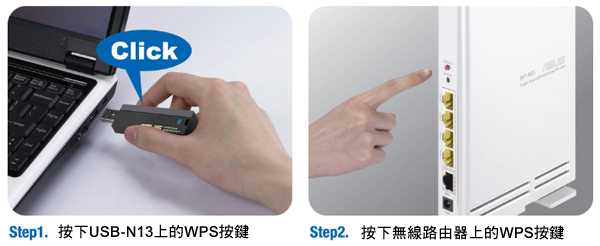

| Features | WPS Push Button (PBC mode) to launch WPS wizard |
| 介面 | USB2.0 |
| 天線形式 | 2 on-board PCB antenna |
| 運作頻率 | 2.4 ~ 2.5 GHz |
| 運作頻套 | 11 for N. America, 13 Europe (ETSI), 14 Japan |
| 傳輸速率 | * 802.11n:Tx: 300Mbps (Max) / Rx: 300Mbps (Max) * 802.11g:54/48/36/24/18/12/9/6Mbps * 802.11b:11/5.5/2/1Mbps |
| Output Power | * b mode : 18dBm, * g mode : 15dBm, * n mode : 15dBm |
| LED指示燈 | Link , Activity & Power |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK |
| Range | Up to 150m |

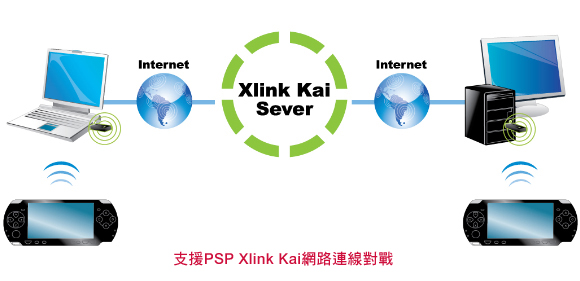

| 特殊應用 | * Software AP (Win XP only) * Xlink Kai( Win XP & Mac OS only) |
| 公用程式 | * Mobile control center: Integrate all tools and indicate real time status information on system tray * Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature. * Mobile manager: Support automatic roaming and network reconfiguration between different locations * Site survey: Explore your wireless networking topology through a handy way * WPS Wizard: High-speed wireless network is just a few clicks away |
| 認證 | CE, FCC, IDA, IC, C-Tick, NCC, GOST |
| 產品尺寸 | Dimensions:70 mm (L)* 22 mm (W)*10 mm (H) Weight:12g |
| Environmental Specification | * Operating Temperature: 0°C to 45°C * Storage Temperature: -10° to 70° C (-14°F to 158°F) * Operating Humidity: 15% to 95% RH (Non-condensing) * Storage Humidity: 15% to 95% RH (Non-condensing) |
| 包裝內容 | * USB Wireless Adapter *1 * Quick start guide*1 * Warranty Card*1 |
| Network Architecture Types | Infrastructure and ad-hoc |
| 支援作業系統 | * Windows 2000/ XP(x86/x64) * Mac 10.3/10.4/10.5 * Linux 2.4 and 2.6 |
